Frame 3

I better get this up quick before I lose half my audience due to my previous post.

This is the third of three frames that I'm making for gifts. I ran out of attractive frames in my house to copy so I googled 'picture frame profiles' and came up with this one.

Red Rabbet: 12/64w x 34/64h
Black: 4/64w x 40/64h
Green: 34/64w x 27/64h
Purple: 48/64w x 16/64h
Yellow: 23/64w x 16/64h
Orange: 8/64w x 25/64h

#10 round followed by #2 hollow

Rabbet followed by #4 hollow

#6 hollow followed by #4 round

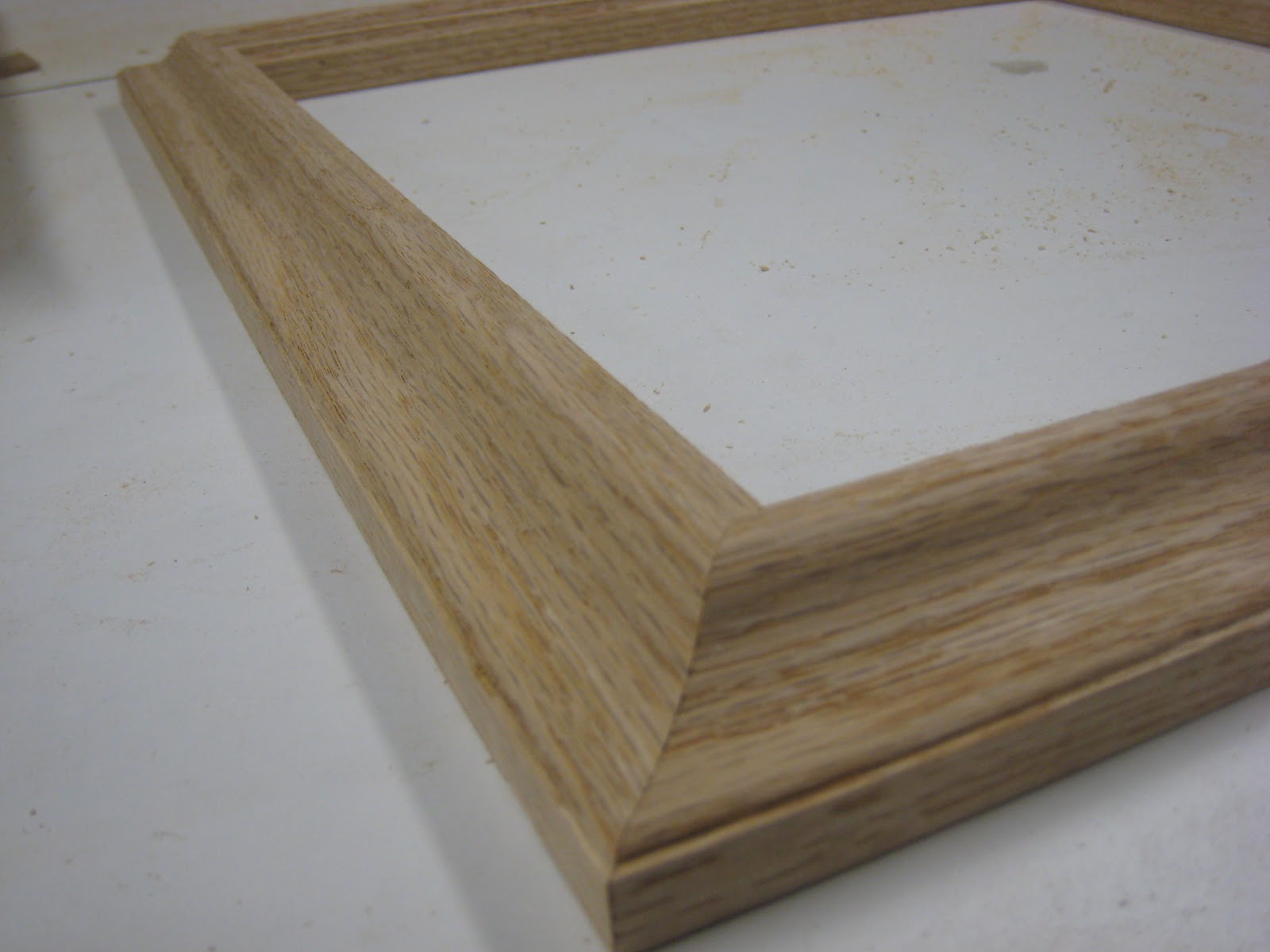

The results:

Oval segments make it.
(Paint on my new sticking board!)

Look at the process. As I noted earlier, rounds follow the tips of two rabbets and hollows follow the edges of a chamfered rabbet. It holds true in everything we've done so far.

Layout is the key to success.

Google molding profiles and see if you can sketch out a probable lay out.

This is the last time I make one out of oak.

Send in requests or your going to get a Harry Potter wand carving seminar.
